How to Find Bolt Pattern on Wheels: Accurate Measurement for Perfect Fitment

Understanding how to find bolt pattern on rims is critical when shopping for new wheels, upgrading your tires, or planning any custom modifications.

The bolt pattern determines whether a wheel fits your vehicle’s hub and matches its lug nut configuration. Getting it wrong means wasted money, mounting issues, or worse, compromised safety.

This detailed resource explains how to check bolt pattern, where to locate it, and how to confidently measure it yourself or with professional tools. Whether you're upgrading wheels for a sportier stance, better performance, or a winter set, this article ensures you avoid costly mistakes.

What Is a Bolt Pattern?

A bolt pattern (also called a lug pattern or bolt circle) refers to the number of lug holes and the diameter of the circle they form on a wheel. It's expressed in a format like 5x114.3, where:

• The first number represents the number of lug holes (in this case, 5).
• The second number is the diameter in millimeters of the imaginary circle the lug holes form (here, 114.3 mm).

Why Bolt Pattern Matters

The bolt pattern is not universal. Even if a wheel looks like it fits your vehicle, mismatched bolt patterns will prevent the wheel from mounting properly.

• Improper bolt pattern fitment can result in:
• Uneven pressure on studs
• Loose or improperly torqued lugs
• Vibrations at high speeds
• Unsafe driving conditions

Bolt pattern compatibility ensures your wheels align precisely with your hub, maintain safe torque settings, and allow for smooth braking and cornering.

Where to Find Bolt Pattern on Rims

OEM Wheels:

• Most original equipment manufacturer (OEM) wheels have the bolt pattern stamped or engraved on the back of the rim or inside the barrel.
• Look near the hub bore or on the spoke for markings like "5x114.3" or "6x139.7."

Aftermarket Wheels:

• On aftermarket rims, bolt pattern info may appear as part of a sticker on the barrel or near the valve stem area.
• In some cases, bolt pattern markings may not be visible at all, especially if the wheels are custom or repainted.

Online Tools:

• Wheel retailers like 1010Tires and RealTruck often include bolt pattern information in their product specifications.

How to Know Bolt Pattern on Rims

If the marking isn’t visible or you’re unsure, you can measure the bolt pattern directly. Here's how:

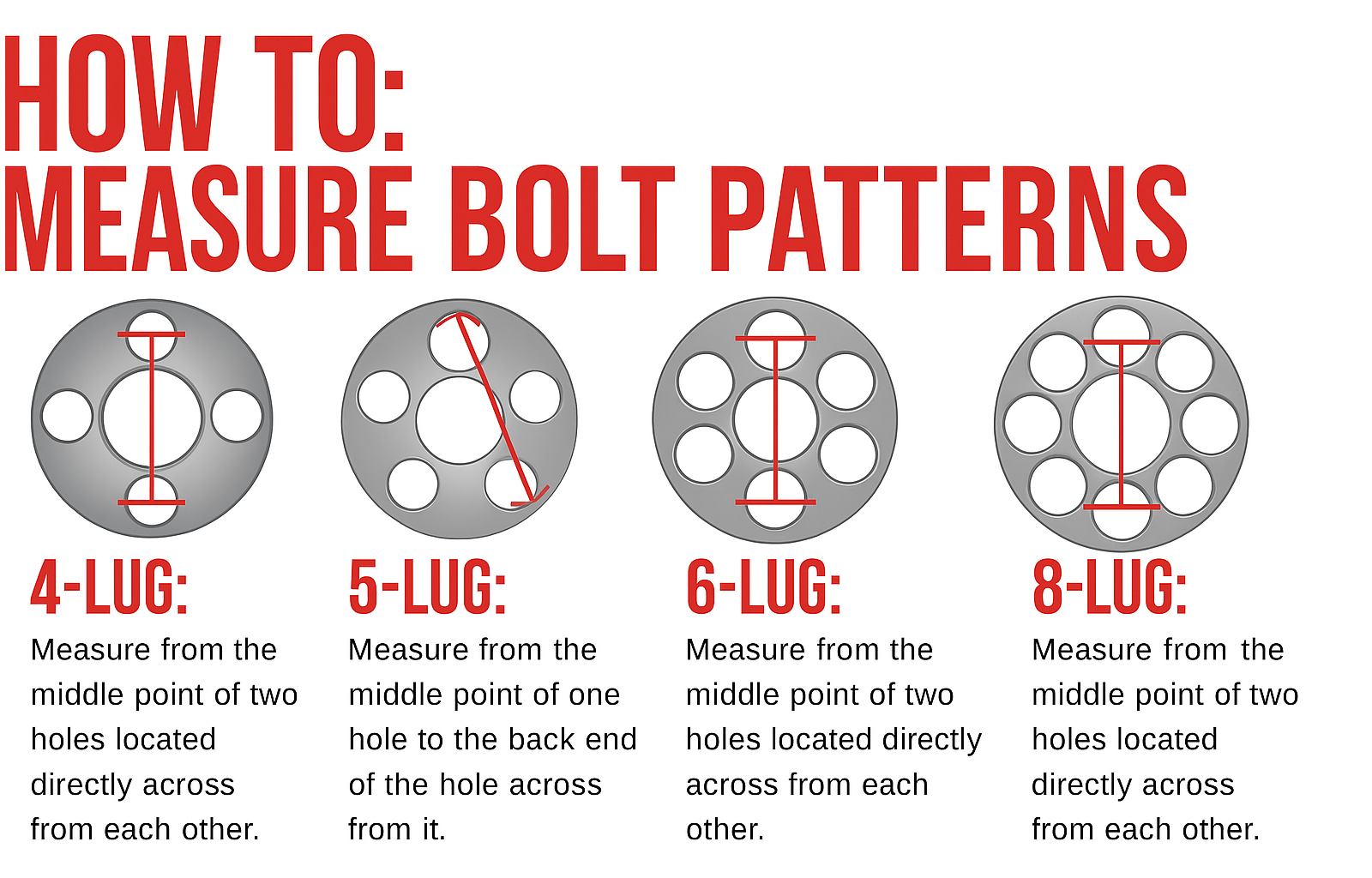

4-Lug, 6-Lug, or 8-Lug Wheels (Even Numbers)

1. Measure from the center of one lug hole to the center of the lug hole directly across from it.

2. That measurement is the bolt circle diameter (BCD).

3. Combine with the lug count to get the full bolt pattern. For example:

• 4 lugs, 100 mm across = 4x100
• 6 lugs, 139.7 mm across = 6x139.7

5-Lug Wheels (Odd Numbers)

• You can’t measure directly across because there’s no opposite lug. Instead:

1. Measure from the center of one lug to the outer edge of the lug two holes away.
2. Use a bolt pattern chart to convert the measured distance into BCD.

Tools to Measure Bolt Pattern

• Digital calipers: For high precision.
• Tape measure: Adequate for casual use.
• Bolt pattern gauges: Pre-set tools with hole alignments for easy checking.
• Online calculators: Input distance and lug count for instant pattern results.

Bolt Pattern FAQs

How to check bolt pattern at home?

• Count the lug holes.
• Measure across (for even lugs) or from center to outer edge (for 5-lug).
• Convert using a chart or calculator.

Can I change my bolt pattern?

• Yes, but it requires adapter plates or hub conversions, which add cost and may affect offset and safety.

Are bolt pattern and stud pattern the same?

• Yes. Both refer to the same concept of lug configuration.

Is wheel bolt pattern vehicle-specific?

• Yes. Different makes, models, and years often have unique bolt patterns.

Can one wheel fit multiple vehicles?

• Only if the bolt pattern, offset, center bore, and hub specs match.

Pros and Cons of Matching Bolt Pattern

Pros

• Guaranteed wheel-to-hub fitment
• Proper torque distribution
• Smooth handling and brake response
• Less stress on studs and bearings

Cons

• Limits wheel options without adapters
• Can require detailed measuring or professional input

Common Bolt Patterns by Vehicle Type

Compact Cars:

• 4x100
• 5x100
• 5x114.3

SUVs and Crossovers:

• 5x114.3
• 5x120
• 6x114.3

Trucks:

• 6x139.7
• 8x165.1
• 8x170

Bolt pattern can vary even within trims or model years, so always confirm with a reliable source or measure directly.

Real-Life Use Case: Fitting Custom Wheels on a Lifted Truck

A driver upgrading to 20x10 wheels with -24 offset may assume any 6-lug pattern will fit. However, a 6x135 wheel won’t mount on a 6x139.7 hub, even though both are 6-lug. Ignoring bolt pattern compatibility results in mounting failure, expensive returns, and potentially dangerous DIY modifications.

Checking how to know bolt pattern on rims ahead of time avoids these risks.

How to Cross-Reference Bolt Patterns

1. Find your vehicle’s OEM bolt pattern from the owner’s manual, manufacturer website, or trusted wheel retailer.

2. Compare it against the new wheel specs.

3. If mismatched, explore options:

• Use wheel adapters (with caution).
• Choose wheels with matching bolt pattern.

Note: Adapters can change track width, affect offset, and must be torqued correctly.

Choosing Wheels Based on Bolt Pattern

When browsing aftermarket wheels:

• Always check the bolt pattern listed in the specifications or fitment guide.
• Avoid assuming compatibility based on number of lugs alone.
• Ask retailers to verify fitment using your make, model, and year.

Professional Tips for Ensuring Fitment

• Use reputable sources like 1010Tires or manufacturer-specific guides.
• Double-check center bore size, offset, and hub compatibility.
• If unsure, visit a tire or wheel specialist for measurement and fitment advice.

Visual Differences in Bolt Patterns

Wheels with the same number of lugs can still have widely varying bolt circles.

Example:

• 5x114.3 vs. 5x120: Both have 5 lug holes, but the bolt circles differ by nearly 6 mm. That’s enough to prevent proper fitment.

Close isn’t good enough when it comes to wheel fitment. Precision is non-negotiable.

Custom Builds and Staggered Setups

If you’re building a custom vehicle or running staggered wheel setups (different widths front/rear):

• Ensure both bolt patterns match front and rear unless the vehicle is designed for dual-pattern fitment.
• Use spacers and adapters cautiously and only when fitment has been professionally verified.

Bolt Pattern Best Practices

• Always verify the bolt pattern before buying wheels.
• Measure accurately using the correct method based on lug count.
• Use online tools and conversion charts for support.
• Consult professionals when dealing with custom or performance setups.
• Remember: bolt pattern is one of several specs that must align for proper wheel fit.
